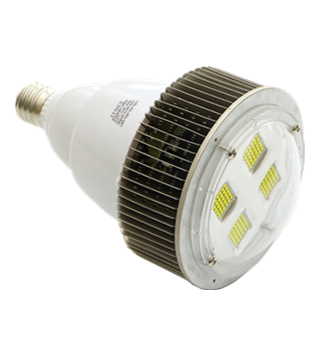

200W-300W LED High Bay Lamp
Model:KW-SE250W
Product introduction
Patented technology Aluminum Alloy fin-heatsink designConvenient E26 or E27 or E39 or E40 screw-in base.
Power:200W,250W,300W,350W
Patent No.:ZL201220618078.6Contact manufacturer
|
|
The Great Light KW-SE model (Patent No.:ZL201220618078.6) design the simplest, easiest, most efficient, most cost effective LED for high demands lighting ,such as Manufacturing and industrial buildings,warehouses, shopping spaces, supermarkets, schools, hospitals, and precision manufacturing assembly. Installation height 3-35 m. Industrial LED lamp series KW-SE is new structure with a high light output and low power consumption for universal use. Chip Cooling method patented technology Aluminum Alloy fin-heatsink design with fan cooling guarantees stable light output and extend the life of chips. Suitable for screw-in base (E26/E27/E39 / E40) or suspended installation.
PRODUCT NOTES: When installing LED KW-SE Series retrofit lamps within HID/HPS/MHL/CFL fixtures, ballast must be bypassed when present. |
|
Parameter
|
|||||
| Model | KW-SE | ||||
| Power | 200W | 250W | 300W | ||
| Dimension | 187X298mm | 187X298mm | 187X330mm | ||
| N.W. | 1.42kg | 1.42kg | 1.85kg | ||
|
Input Voltage
|
AC100V～305V
|
||||
|
Frequency Range
|
50Hz～60Hz
|
||||
|
Total Harmonic Distortion
|
≤ 9 %
|
||||
|
Power Factor
|
＞0.95
|
||||
|
Power Efficiency
|
＞87 %
|
||||
|
Working Voltage
|
DC30～36V
|
||||
|
Color Rendering Index
|
Ra＞80
|
||||
|
Material
|
Aluminum Alloy
|
||||
|
Led Luminous Efficiency
|
130Lm /W
|
||||
|
lamps Efficiency
|
＞91 %
|
||||
|
Illuminance Uniformity
|
＞0.6
|
||||
|
Color Tenperature
|
2700-7000K
|
||||
|
Light emitting angle
|
60/90/120°
|
||||
|
Junction Temperature
|
≤80℃
|
||||
| Lamp Base | E40 E39 E27 E26 | ||||
|
Working Lifespan
|
50000H
|
||||
1.High brightness CREE or Sumsung chips .
2. Using intelligent temperature control driver , Safe ,Reliable,Stable.
3. Unique lighting design, higher lighting effects , Durable aluminum housing .
4. To use Fin sheet heat sink, 10 times heat dissipation effect compare regular led light heat-sink.
5. With 60° 90° or 120° lens, no need refector; high bay reflector can supply with lamp to you also as you like.
6. Perfect fan cooling:long life ,double ball,high speed,no noise. Instantaneous dispel the heat in the LED lamps,the perfect solutions to the heat ventilation of led.
7.Light weight 1~2kg ,low cost in shipping fee ,install more easy and safety than old type led high bay light(>9kg)
Replacement MHL/HPS/CFL/HID lamps
Neutral packing with PE foam to protect lamp
6pcs per carton ,Carton Size: 61x42.5x38CM
Site / Roadway / Post Top, Security lighting, Parks and quads,Municipal lighting, Parking Garage, Low Bay , Parking Garages, Gas Station Canopy Lighting, Warehouse High Bay, Grow Lighting etc..
